The signaling engine behind Fonoster

The SIP server
built for the cloud.

A lightweight SIP proxy, location server, and registrar.

Get started View on GitHub

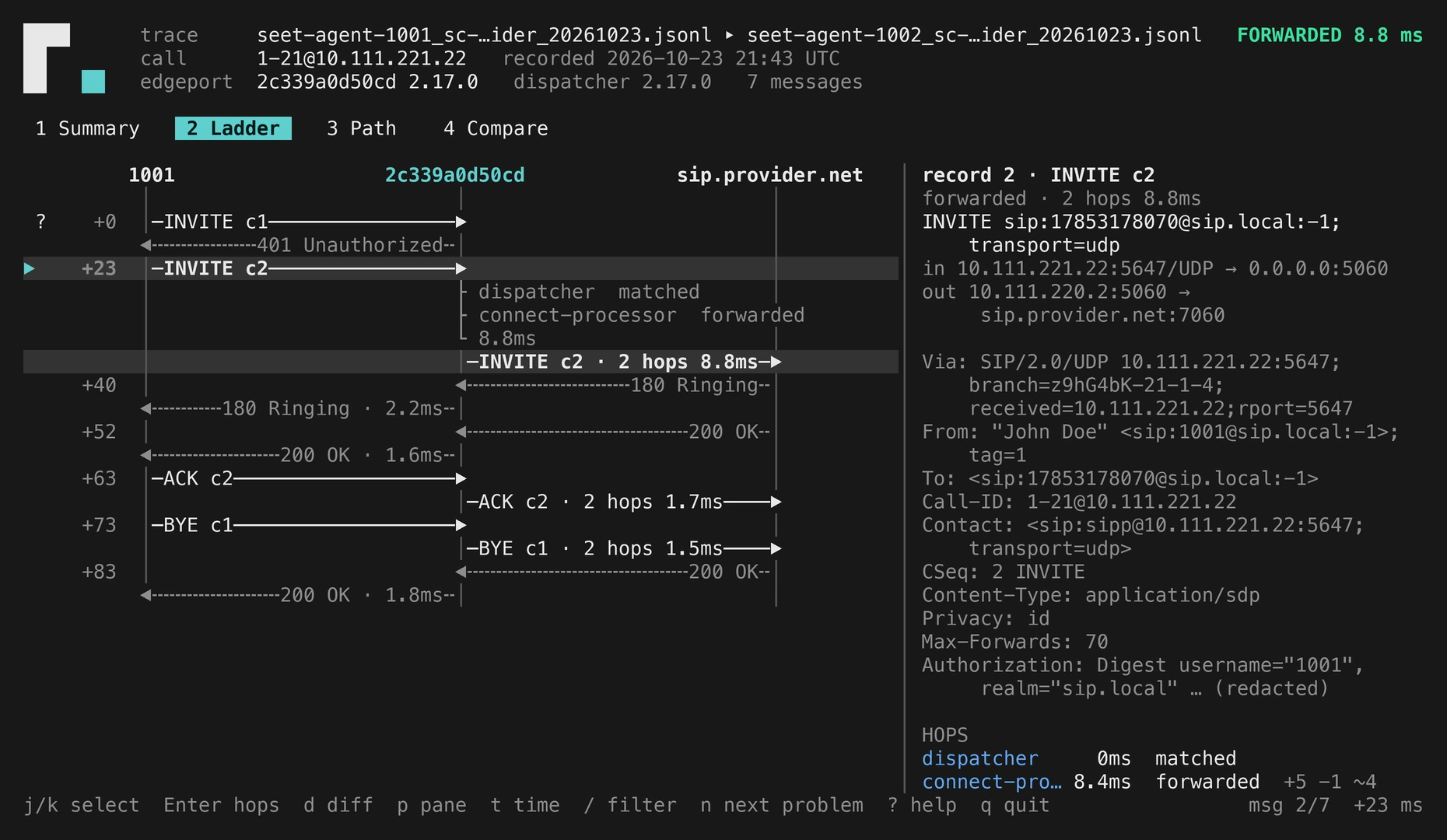

sip trace · INVITE from 1001@sip.local

00.004→INVITE sip:+19103434434@sip.local SIP/2.0

00.006·edgeport-01 → dispatcher (gRPC)

00.007·match req => true → connect

00.011·egress domain-01 › number-01 › trunk-01

00.013←100 Trying

00.412←180 Ringing

04.120←200 OK session established

1.7K

GitHub stars

750K+

Docker pulls

80+

releases shipped

2017

building since

Proven in production

The engine behind Fonoster.

Every call on Fonoster Cloud is signaled by Routr.

Fonoster builds AI that answers the phone. Every call goes through Routr.

fonoster/routr-one:2.15.4helm · routr-connect

See how Fonoster uses it

Scales your media servers

Sits in front of Asterisk and FreeSWITCH and spreads calls across them. Not a replacement.

Carriers and CPaaS platforms
Office and home phone systems
Intercom and paging networks
Asterisk and FreeSWITCH clusters

Architecture

Small services. One SIP server.

Small services over gRPC. Replace or scale any of them.

Endpoints

Softphones · Phones
Media servers
CarriersPhones · Media servers · Carriers

EdgePort

UDP · TCP · TLS
WS · WSSUDP · TCP · TLS · WS · WSS

Dispatcher

matchFunc:
req => truematchFunc: req => true

Middlewares

RTPRelay · Auth
Metrics · CDRsRTPRelay · Auth · Metrics

Processor

Connect, or
one you writeConnect, or one you write

Cooperating services Location Service API Server Registry & Requester

Routr Connect

Your SIP network, as resources.

The built-in Processor for SIP Connect 1.1. Describe your network as resources; Routr does the routing.

Learn more about Connect

number.yaml

apiVersion: v2beta1kind: Numberref: number-01metadata:  name: "(910) 343-4434"  geoInfo:    city: Durham, NC    country: USAspec:  trunkRef: trunk-01  location:    telUrl: tel:+19103434434    aorLink: sip:conference@sip.local    sessionAffinityHeader: X-Room-Id    # calls to this number land on one media server

apiVersion: v2beta1kind: Numberref: number-01metadata:  name: "(910) 343-4434"spec:  trunkRef: trunk-01  location:    telUrl: tel:+19103434434    aorLink: sip:conf@sip.local    sessionAffinityHeader:      X-Room-Id

$ rctl numbers create -f number.yaml

✔ number-01 created

Scale

Stateful at the edge.
Stateless everywhere else.

Only EdgePorts hold state. The Location Service knows which EdgePort each endpoint is on, so a call can land on any of them and still arrive.

00.0001001 → edgeport-01INVITE sip:1002@sip.local

00.002edgeport-01 → dispatcherSIP becomes protobuf; the EdgePort keeps the transaction

00.003dispatcher → connectstateless: match req => true, forward

00.005connectlocation lookup on redis: 1002 is registered on edgeport-02

00.006connectadds Route: edgeport-02 and X-EdgePort-Ref: edgeport-01

00.008edgeport-01 → edgeport-02hands the INVITE to the EdgePort that holds 1002

00.010edgeport-02 → 1002delivered on the existing connection

Across EdgePorts

Any EdgePort takes any call and hands it to the one that holds the target.

Across media servers

A Peer groups Asterisk or FreeSWITCH behind one address: round-robin, least-sessions, session affinity.

Across services

Stateless replicas behind a Kubernetes service. Location shared on Redis.

Resilience

No single point of failure.

Every service is its own pod. Lose an EdgePort, the others keep taking calls. Lose a Processor, the Dispatcher routes around it.

EdgePorts: stateful, scaled out, any one can take a call
Dispatcher, Processors, Middlewares: stateless replicas
Location Service: shared table on Redis
API Server: Postgres, backed up like any database

routr · us-east1healthy

1,240active calls

0new calls refused

3 / 3edgeports up

—pod restart

edgeportnew calls land on 01 and 03

dispatcherstateless

connectstateless

locationredis · shared table

apiserverpostgres · primary + standby

10:42:03edgeport-02OOMKilled · pod terminated

10:42:03locationedgeport-02 contacts expire · clients re-register on 01 and 03

10:42:04edgeport-01new calls landing · nothing refused

10:42:05edgeport-02new pod Running · back in rotation

Programmable

Extend it in any language.

Processors and Middlewares are gRPC services. Write one in Node, Go, or Java and swap it in.

Build a Processor

processor.ts

import Processor, { Response } from "@routr/processor" const processor = new Processor({ bindAddr: "0.0.0.0:51904", name: "echo" }) processor.listen((req, res) => {  // every INVITE, REGISTER, and BYE lands here  logger.verbose(req.message.method)  res.sendOk()})

import Processor  from "@routr/processor" new Processor({ bindAddr: ":51904" })  .listen((req, res) => {    // INVITE, REGISTER, BYE…    logger.verbose(req.method)    res.sendOk()  })

$ npm run start:echo

echo listening on 0.0.0.0:51904

Deploy anywhere.

Docker One container, Postgres included. docker compose up Kubernetes Helm chart. Every service autoscales. helm install routr routr/routr-connect Dev Containers The whole stack, for contributors. Open in VS Code

Community

Built in the open.

MIT licensed, built on GitHub. Questions and ideas go to Discussions and Discord.

Routr's architecture and design is fantastic. A breath of fresh air. Being Docker and Kubernetes ready is a huge win over a more traditional SIP server setup.

Phil JonesVP of Web Architecture, VQ Communications

I came across Routr, which seems to be the one and only cloud-first Kubernetes-ready SIP server on the planet!

Jessie WadmanCloud Architect, Camanio AB

I think this project has a great promise to become a transformative technology.

jbwill36GitHub Discussions

GitHub Discussions Roadmap and help from the team. Open Discussions Discord Chat with people running Routr. Join the server

Your SIP network,
up in one command.
